Product advantages
PRODUCT DETAILS
01

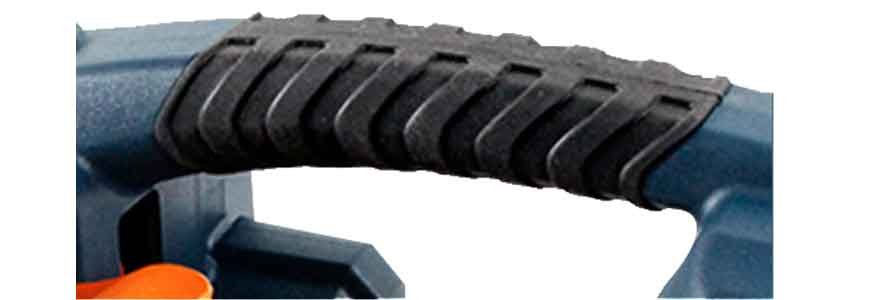

insulated non-slip handle
Ergonomic, matte finish for improved hand comfort and friction
02

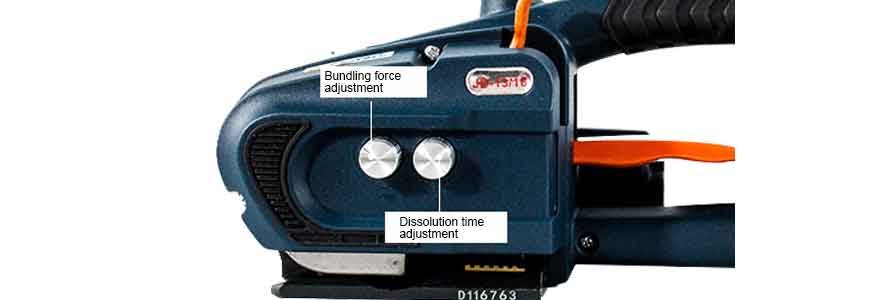

Welding and tightening adjustment
Adjust the welding time and the tightening force clockwise according to the size and quality of the strap, counterclockwise reduction
03
Welding and tightening adjustment

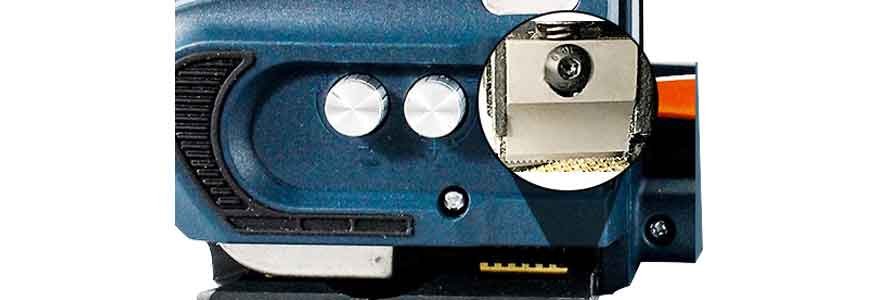

High-strength alloy, fast cutting speed, long and durable cut.
04
Welding and tightening adjustment

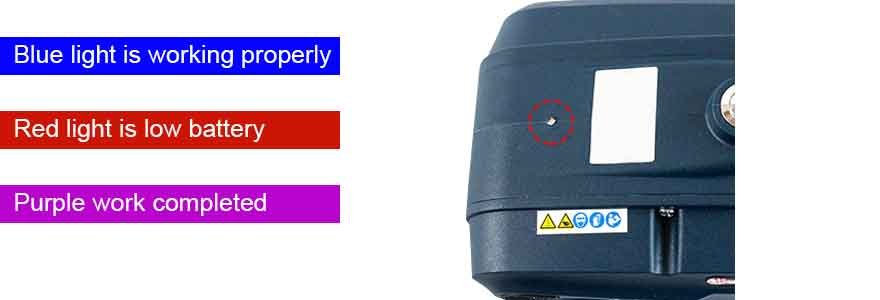

Blue light is working properly,Red light is low battery,Purple work completed
PRODUCT PARAMETERS
| Brand | WIMING |
| Product name | WMD-13/16 |
| Battery voltage | 11.1V |
| Charging time | About 90 minutes |
| Capacity | 4.0A |
| Suitable for strapping | PET/PP |
| Machine size | 360mm*140mm*130mm |
| Packing belt width | 13-19mm |
| Packing belt thickness | 0.4-1.2mm |
| Welding time | 2-5s |
| Binding force | 60-2800N adjust |
| Machine weight | 3.34KG（battery0.417g） |

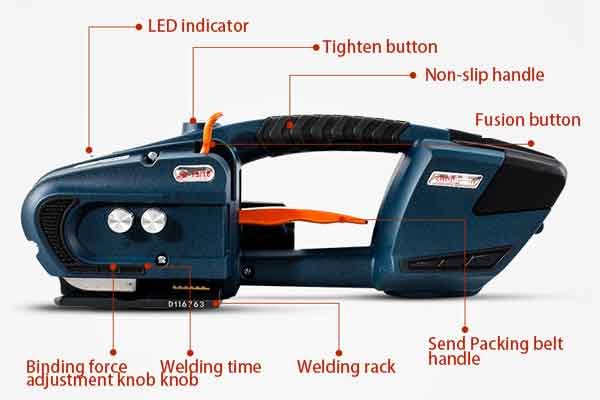

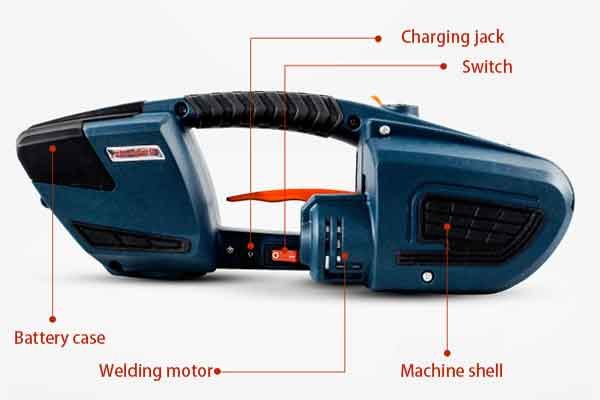

Zero part name

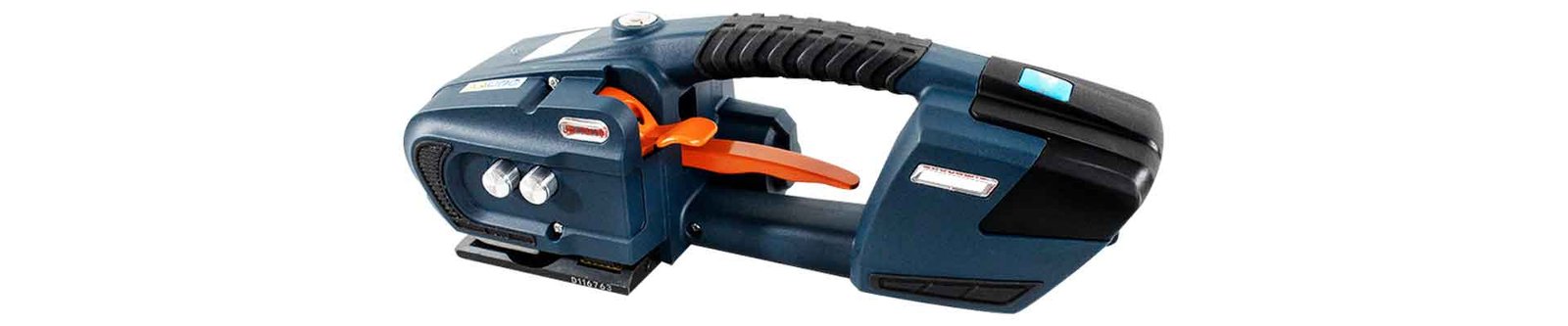

Electric hand-held mobile strapping machine Description
This baler uses high strength panels and friction welding principles. Breaking the traditional closed structure. The product has strong pulling force, high efficiency, small footprint and easy to carry.

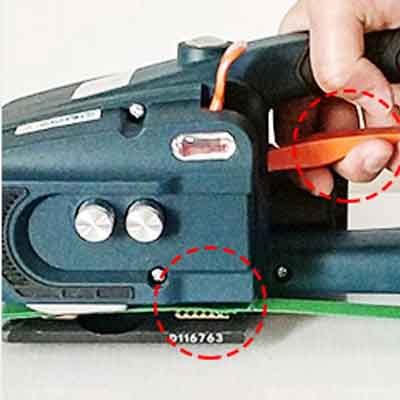

is equipped with a plastic strapping
Lift the handle with your right hand, insert the plastic strapping by your left hand, stack the top and bottom in parallel, and release the handle.

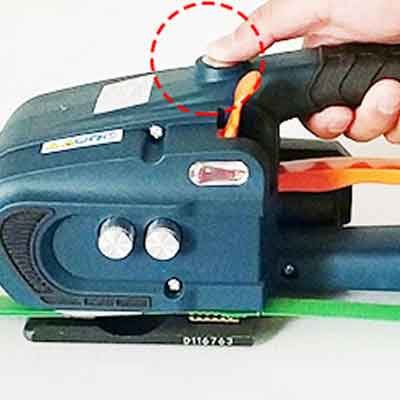

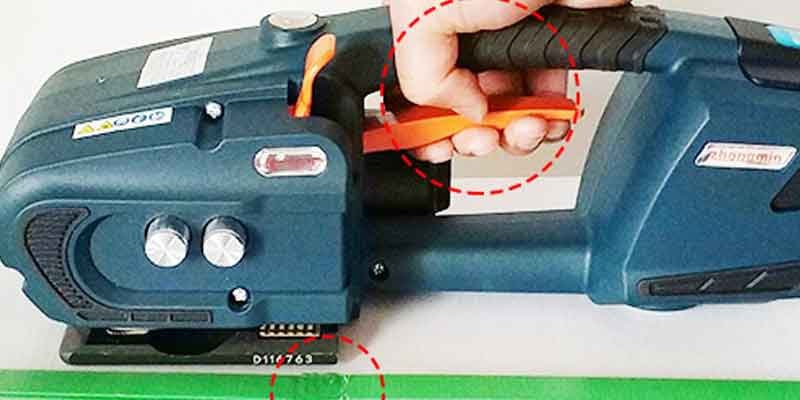

tightening plastic strapping
Press the tension button,then release the tension button when the plastic strapping is tightening.

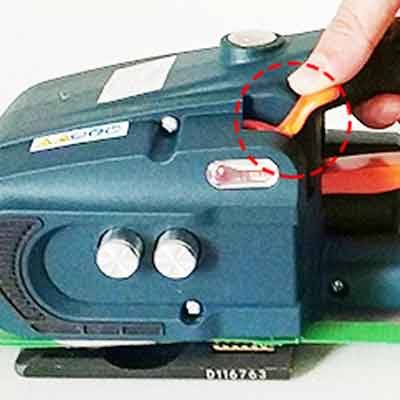

03 contact welding
After tightening, press the fusion button, then leave it immediately, the plastic strapping will be welded and the excess plastic strapping will be cut off.
04 remove the packaging tools
Lift the handle and loosen the strapping accordingly. Pull the baler to the right away from the strapping.
